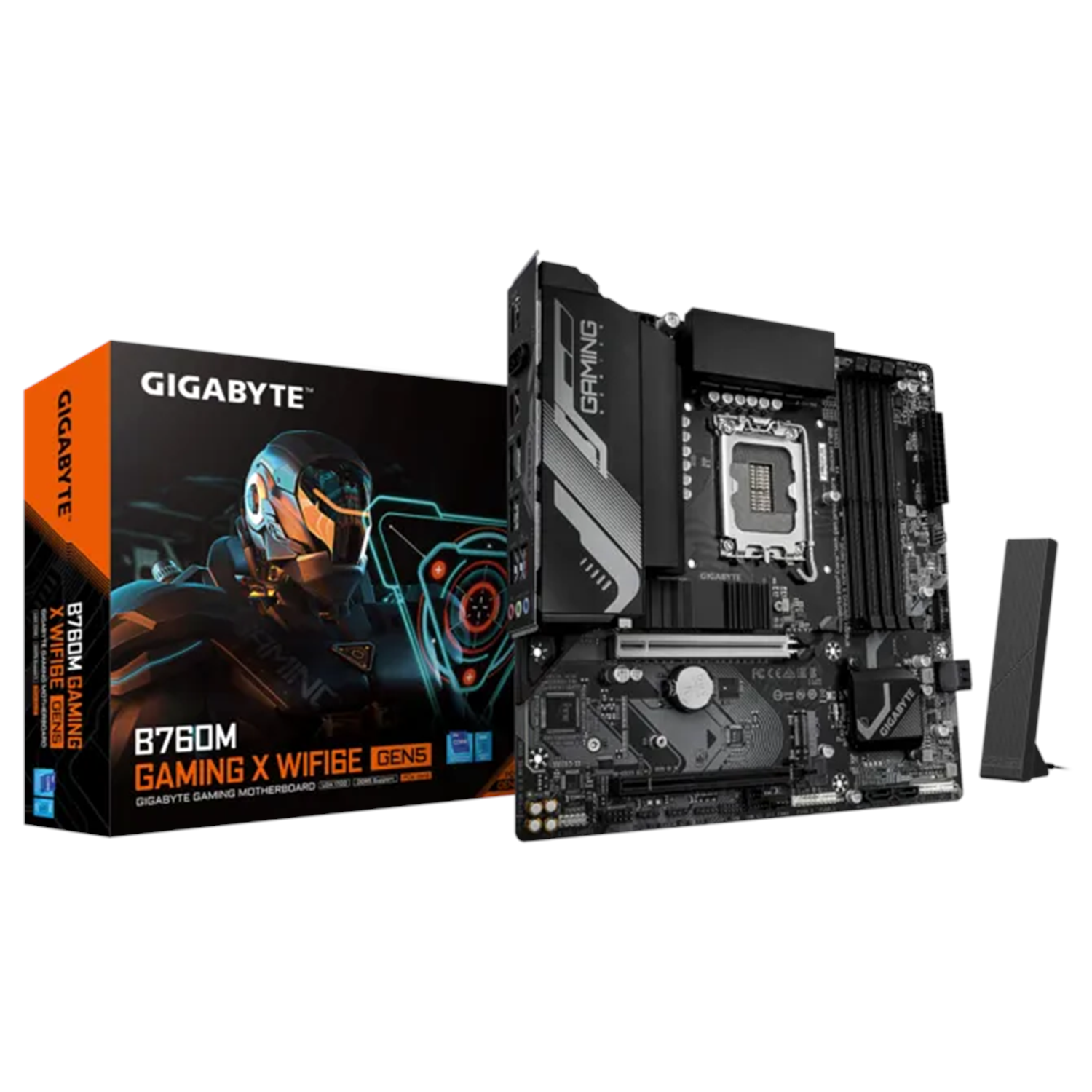

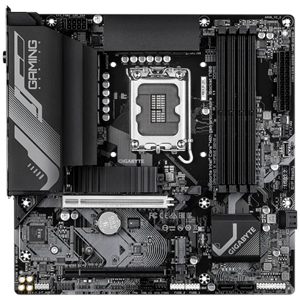

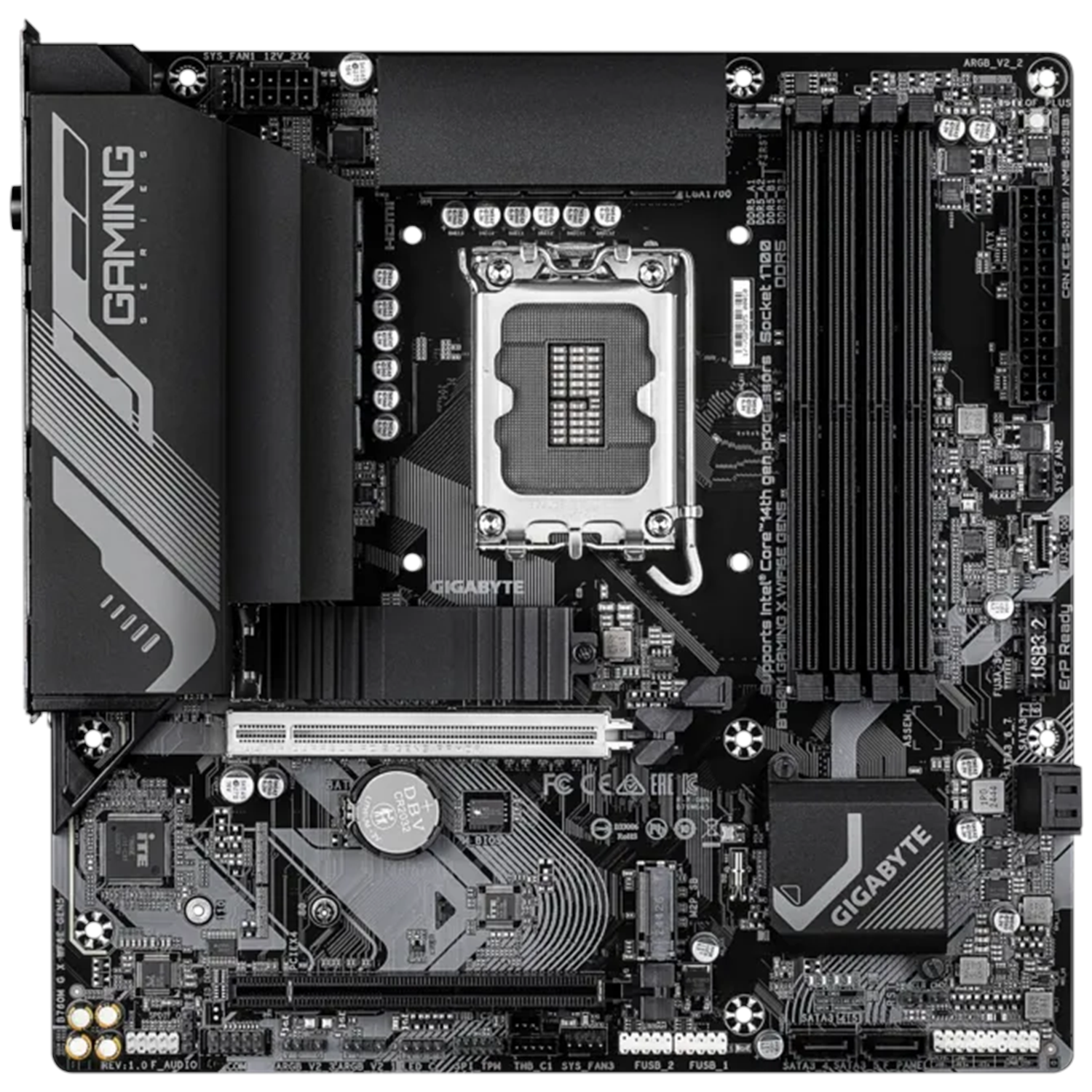

GIGABYTE B760M GAMING X AX WIFI-6E DDR5 HDMI DP PCIE 4.0 1700p ATX

Güvenilir Alışverişin Adresi

Arama

Giriş Yap Hesap Oluştur

Bitmek üzere... Ücretsiz Kargo

GIGABYTE B760M GAMING X AX WIFI-6E DDR5 HDMI DP PCIE 4.0 1700p ATX

Henüz Değerlendirilmemiş

Barkodu: 4719331853228
Stok Kodu: DCADA6F6-199A-47FC-A212-A8803E055697
Stok Miktarı: Stokta Var
Markası: GIGABYTE

11.110,77 TL

- +

Whatsapp ile Sipariş

İşlemci

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Yongaseti

Intel® B760 Express Chipset

Bellek

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Dahili Grafik

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Ses Desteği

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Bağlantı Modülü

Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Genişleme Yuvaları

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Depolama Ara yüzü

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Dahili G/Ç Bağlantı Noktaları

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Arka Panel G/Ç

3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU

G/Ç Denetleyicisi

iTE® I/O Controller Chip

Donanım İzleme

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Diğer Özellikler

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

İşletim Sistemi

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Faktör

Micro ATX Form Factor; 24.4cm x 24.4cm

GIGABYTE B760M GAMING X AX anakart, 14., 13. ve 12. nesil Intel® işlemciler için LGA1700 soket desteği sunar. DDR5 bellek desteğiyle 7600 MHz (OC) hızlara kadar çıkabilen bu model, oyun ve yüksek performanslı uygulamalar için idealdir. 4 adet DDR5 DIMM slotu ile 256 GB'a kadar kapasite sağlar.

Gelişmiş bağlantı özellikleri arasında Intel® Wi-Fi 6E AX210 ve Bluetooth 5.3 bulunur. Realtek® 2.5GbE LAN ile kablolu bağlantıda da yüksek hız elde edersiniz. PCIe 5.0 x16 slotu, en yeni ekran kartları ve NVMe SSD'ler için hazırdır. Ayrıca 2 adet M.2 PCIe 4.0 slotu ve 4 adet SATA 6Gb/s bağlantısı ile depolama seçenekleriniz geniştir.

Arka panelde HDMI 2.1 ve DisplayPort 1.2 çıkışları sayesinde 4K çözünürlük desteği mevcuttur. USB bağlantılarında USB 3.2 Gen 2 Type-C® ve çok sayıda USB 3.2/2.0 portu bulunur. Q-Flash Plus ile BIOS güncellemesi kolaydır. Micro ATX form faktörü (24.4cm x 24.4cm) sayesinde çoğu kasaya uyum sağlar.

DDR5 7600MHz (OC) destekli 4 DIMM slotu
Intel® Wi-Fi 6E AX210 + Bluetooth 5.3
Realtek® 2.5GbE LAN
PCIe 5.0 x16 (CPU) + PCIe 3.0 x4 (Chipset)
2x M.2 PCIe 4.0 + 4x SATA 6Gb/s
HDMI 2.1, DisplayPort 1.2
USB 3.2 Gen 2 Type-C®
Q-Flash Plus, RGB Fusion desteği

GIGABYTE B760M GAMING X AX, oyuncular ve yaratıcı profesyoneller için dengeli bir anakart arayanlara hitap eder. Yüksek hızlı bağlantılar ve genişletme seçenekleriyle geleceğe hazır bir sistem kurmanızı sağlar.
